Pump with bottom inlet

Pump with bottom inlet

Product Details

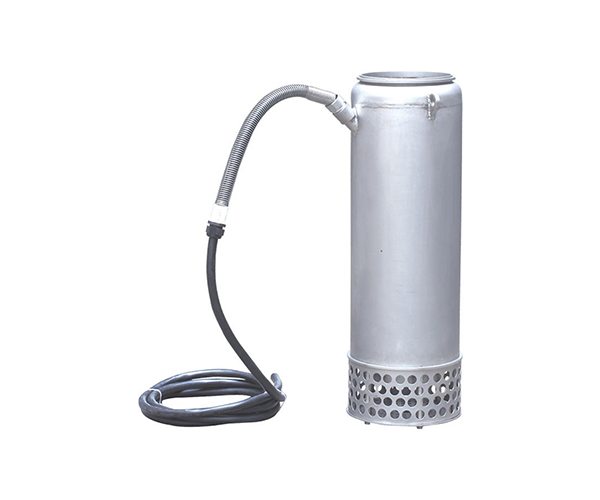

Most axial flow pump set the motor at the bottom of body and water inlet at the middle of body,this make the suction water level high.This pump is with water inlet at the bottom,make the suction water level less than 100mm from ground.



Model

Rated flow

Rated head

Motor power

Outlet dia.

N.W.

Dimensions

T/h

m

kW

Inch

kg

cm

8SZQ500-9-22L

500

9

22

8

45

31×31×75

8SZQ600-10-30L

600

10

30

8

54

40×40×85

10SZQ800-9-37L

800

9

37

10

56

40×40×85
