Electrical cabinet

Electrical cabinet

Product Details

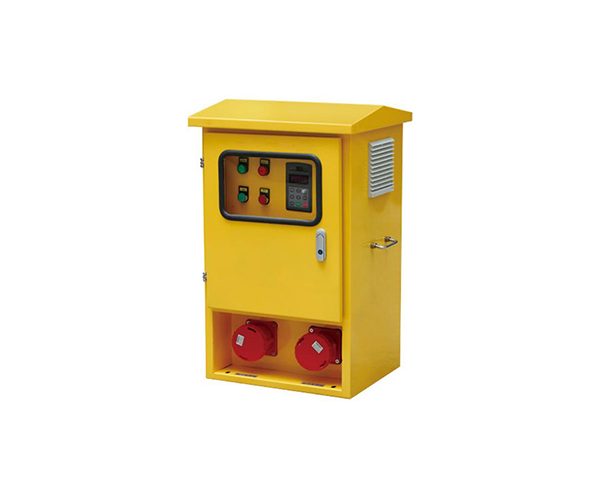

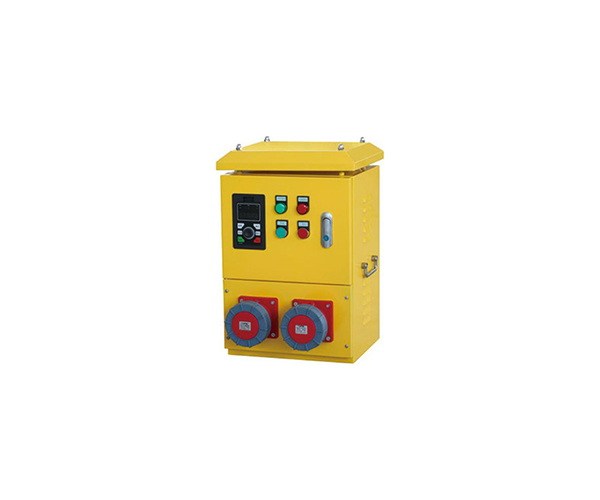

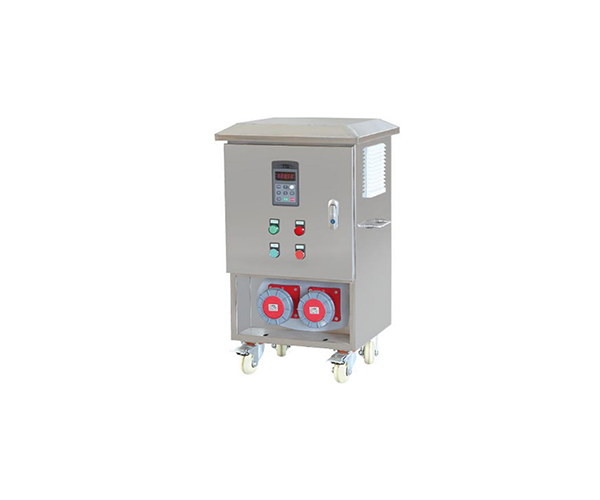

Stainless steel water-proof structure,protection level IP44 and IP54 are optional,the vehicle style with flat bottom is designed specially for vehicle-mounted,features compact structure,easy to be mounted on vehicle for transportation and use.the regular style has four casters for easy movement,all cabinet are equipped with power supply socket and plug,easy connection,easy use.



Model

Mini

Vehicle style single match

Vehicle style double match

Dimensions

Weight

Dimensions

Weight

Dimensions

Weight

11-15

360×350×530

18

450×380×780

30

700×400×750

56

18.5-22

360×350×530

19

450×380×780

32

700×400×770

61

30

400×390×560

25

500×400×900

41

720×400×880

72

37

400×390×560

26

500×400×900

44

720×400×880

75

45

450×430×710

37

550×430×980

50

720×400×980

82

55

450×430×710

38

600×430×1080

56

1000×430×1000

86

75

500×450×780

46

600×430×1080

70

1000×430×1000

110

110





700×500×1600

130





Note:The regular style has four casters for easy movement,100mm higher than other style with the same specification
