Place of Origin: China
Certification: CE,ROHS,GS,TUV,MACHINERY

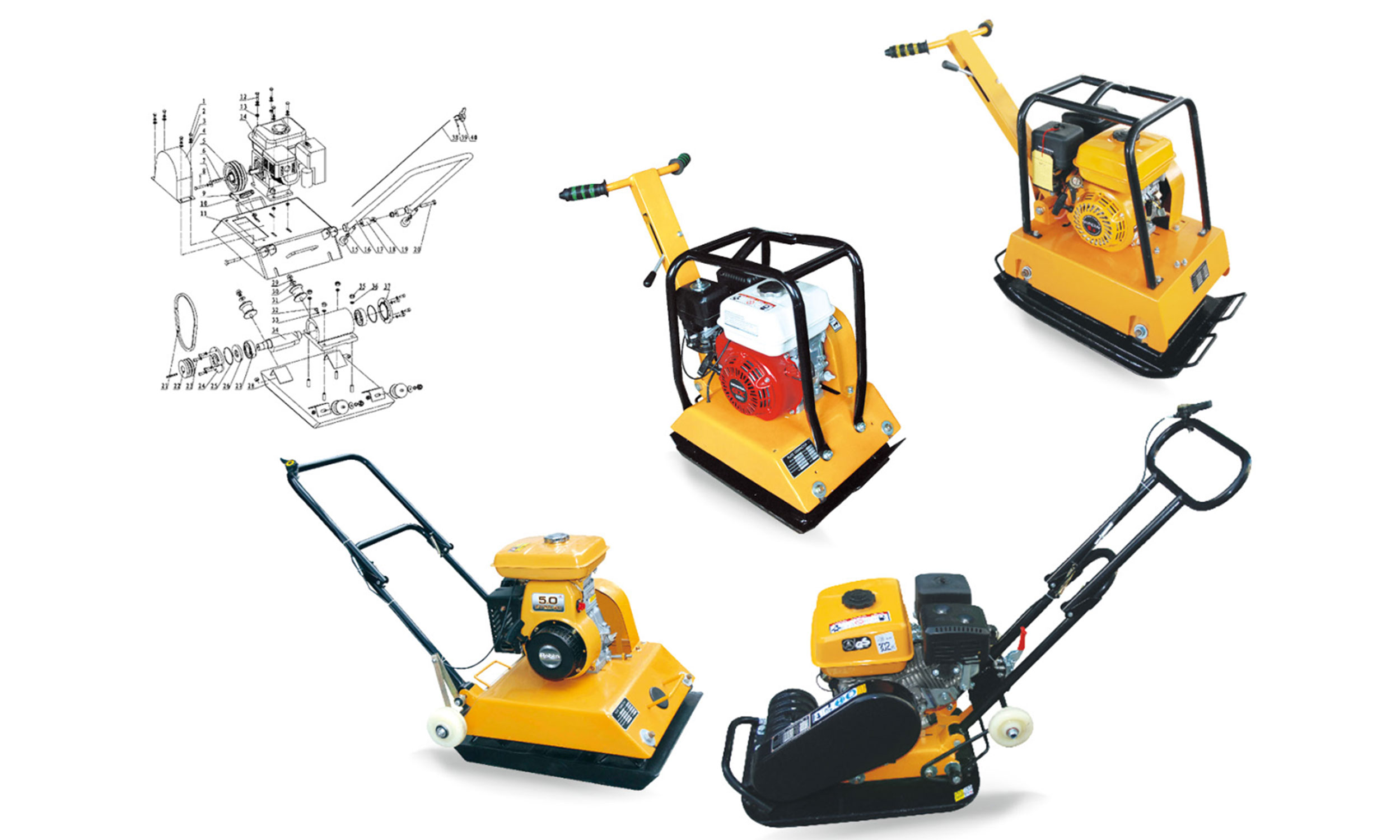

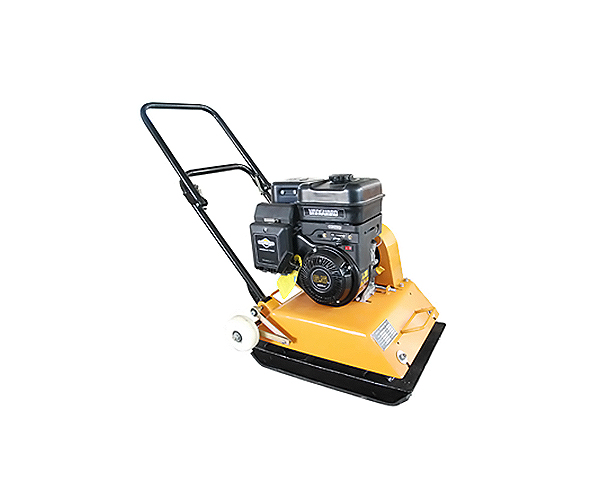

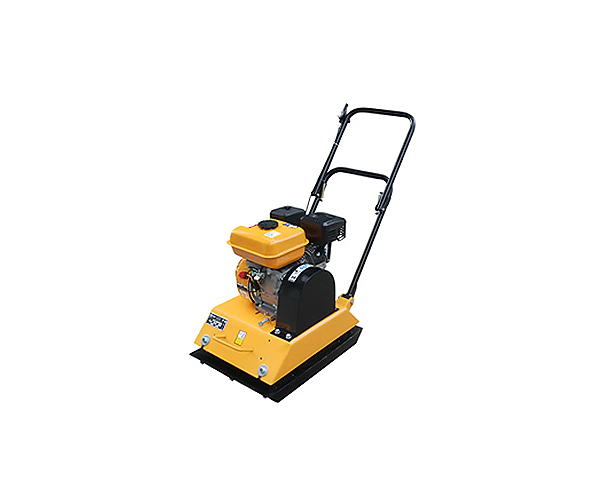

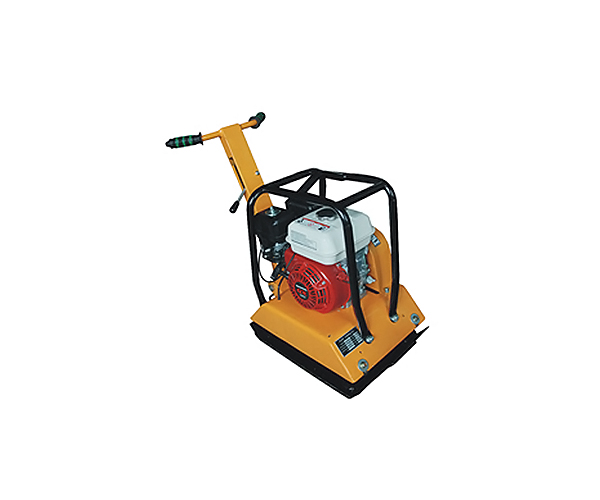

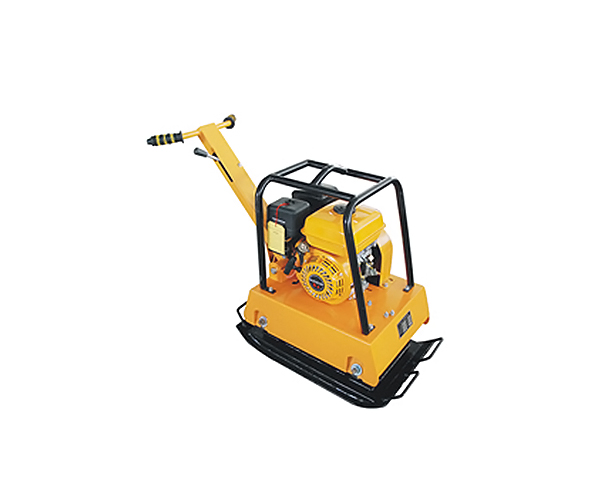

Plate compactor's vibratory force is generated by the rotating centrifugal weight driven by gasoline engine.
It can make the plate work to impact the ground to be solid. It is a perfect machine used to impact the foundation of road or some square ground.
The vibratory force is generated by the rotating centrifugal weight driven by gasoline engine. This can make the plate work to impact the ground hard . It is a perfect machine used to impact the foundation while building road or some square ground. Different brand of gasoline engine are available.
It features a lot of advantages as following :
1)hight standard steel material for the plate.
2)steel structure for the vibrating device.
3)long-time life service due to adoption of rolling cylinder NSK bearing.
4) CE , and GS certificate approved by TUV institution.
Product overview:
The gasoline engine slab is a flat vibration shovel powered by a gasoline engine, used for soft ground compaction, roadbed rafting and other engineering construction.
Technical parameter:
Model | V.P.M | Max.trave-lling | Grade | Vibrating force | N.W. Kg |
Matched Power (Max.output) |
Plate Size | Packing Size mm |
C-60 | 5600 | 15-20m/min | ≤20° | 1050kg | 60kg | 5.0HP | 540×370 | 720×430×570 |
C-60L | 5600 | 15-20m/min | ≤20° | 1050kg | 60kg | 5.0HP | 540×370 | 720×430×570 |
C-80 | 5600 | 15-20m/min | ≤20° | 1350kg | 80kg | 5.5HP | 560×410 | 620×470×660 |
C-80L | 5600 | 15-20m/min | ≤20° | 1350kg | 80kg | 5.5HP | 560×410 | 620×470×660 |
C-90 | 5600 | 15-20m/min | ≤20° | 1500kg | 90kg | 5.5HP | 560×410 | 620×470×660 |
C-90L | 5600 | 15-20m/min | ≤20° | 1500kg | 90kg | 5.5HP | 560×410 | 620×470×660 |
C-120 | 5600 | 20-25m/min | ≤20° | 2100kg | 120kg | 6.5HP | 600×470 | 680×540×660 |
C-120L | 5600 | 20-25m/min | ≤20° | 2100kg | 120kg | 6.5HP | 600×470 | 680×540×660 |
C-160 | 4000 | 20-25m/min | ≤20° | 3000kg | 160kg | 6.5HP | 730×450 | 750×580×880 |
C-100D | 5600 | 20-25m/min | ≤20° | 1650kg | 100kg | 6.5HP | 600×470 | 690×460×850 |
C-120D | 5600 | 20-25m/min | ≤20° | 2100kg | 120kg | 6.5HP | 600×470 | 860×460×960 |
C-160D | 4000 | 20-25m/min | ≤20° | 3000kg | 160kg | 6.5HP | 730×450 | 750×580×880 |
