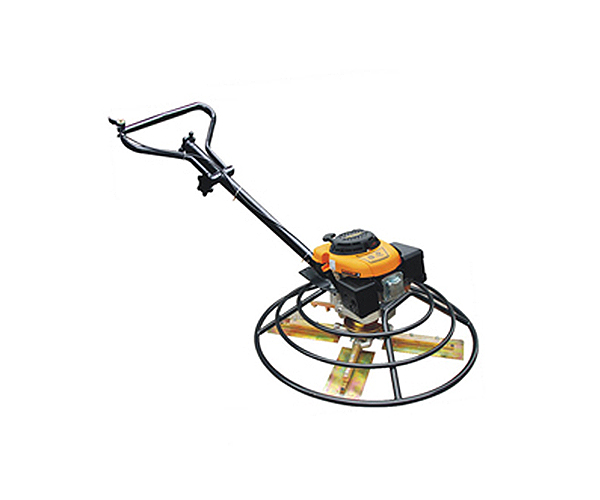

Power Trowel Machine HMR100/80

Power Trowel Machine HMR100/80

Power Source: Gasoline
Place of Origin: Zhejiang, China
Model Number: HMR80/100
Certification: ISO9001:2008,CCC,CE
Bottom diameter: 100cm
Blade size: 35*15cm
Driven by gasoline engine , the outlet speed of gasoline engine is reduced by the element of worm shaft and worm wheel before reaching the blades or plate at the bottom .It is an ideal machine to flat and smooth the concrete floor. Different brand of gasoline engines are available. And with advantages as following ;
1.All the key force transit parts such as worm-gear are subject to be heat-treated.
2.Ensure long-time life service of the drive gear due to the special design by our engineers.
3.Ideal design for the adjusting system of the slope of blade make sure the machine.
be able to work in most efficient condition.
4.All the process of manufacture and working performace are in compliance with CE standard.
HMR series gasoline concrete power trowel
1)Position of the blade can be adjust
2)Blade can be 80mm/100mm/120mm
3)easy operation,reduce fatigue of worker

Product Details

Product overview:





      This product is powered by a gasoline engine. It is used to grout the surface of cement concrete, smoothing and smearing. It is also suitable for the construction of wear-resistant floor and epoxy floor. The surface of the concrete treated by the trowel is smooth and smooth. The process improves the work efficiency by more than 10 times. There are two types of gasoline engine output shafts, horizontal and vertical.





Technical parameter:





Model V.P.M V.P.M V.P.M V.P.M
Speed rpm 70-130 70-130 70-130 70-130
Chassis Diameter cm 80 100 80/100 120
Blade Inclination 0-15 0-15° 0-15° 0-15°
Supporting Gasoline Engine Power 5.5HP/4000rpm 5.5HP/4000rpm 5.5HP/4000rpm 5.5HP/4000rpm

Net Weight Kg

70 93 116 122
Gross Weight Kg 90 123 146 152
Blade Size 24.5×15 35×15 24.5×1535×15 40×15
Packing Size mm 85×85×80 112x112×80 112×1120×80 132×132×80
