WQ(D)-S all stainless steel precision casting sewage sewage submersible pump (wire mouth flange)

WQ(D)-S all stainless steel precision casting sewage sewage submersible pump (wire mouth flange)

Applications for this pump.
Suitable for industries and wastewater treatment plants.
Suitable for wastewater treatment for the petroleum industry, dyeing industry and mining dewatering containing acidic fluid.
This series is suitable for all light acid, corrosive and/or sea water applications.

Product Details

Product overview：





       WQ, WQ type sewage sewage submersible pump (hereinafter referred to as electric pump), consists of three parts: water pump, seal and motor. The motor is located in the upper part of the electric pump and is a single-phase or three-phase asynchronous motor. The double-end mechanical seal is used between the water pump and the motor, and each fixed end is densely sealed.



The seal is made of “O” oil-resistant rubber seal for static sealing.





Product usage：





       This series of electric pumps are widely used in industrial, agricultural, civil construction, municipal environmental protection and other places. They are ideal equipment for pumping mud, mortar, domestic wastewater, sewage excrement and solid particles containing short fibers, paper scraps, sediment and agricultural irrigation and drainage, river pond dredging.





High oil sewage submersible pump：





        The sewage pump in the table is a three-phase asynchronous motor, which can replace the asynchronous motor with a permanent magnet synchronous motor.When the speed is 4000 rpm and 5000 rpm, the corresponding pump head, flow and power multiples are shown in the table below.





 Speed
r/min		 Head
m		 Flow
m³/h		 Power
Kw
2850 1 1 1
4000 2 1.4 2.8
5000 3 1.75 5

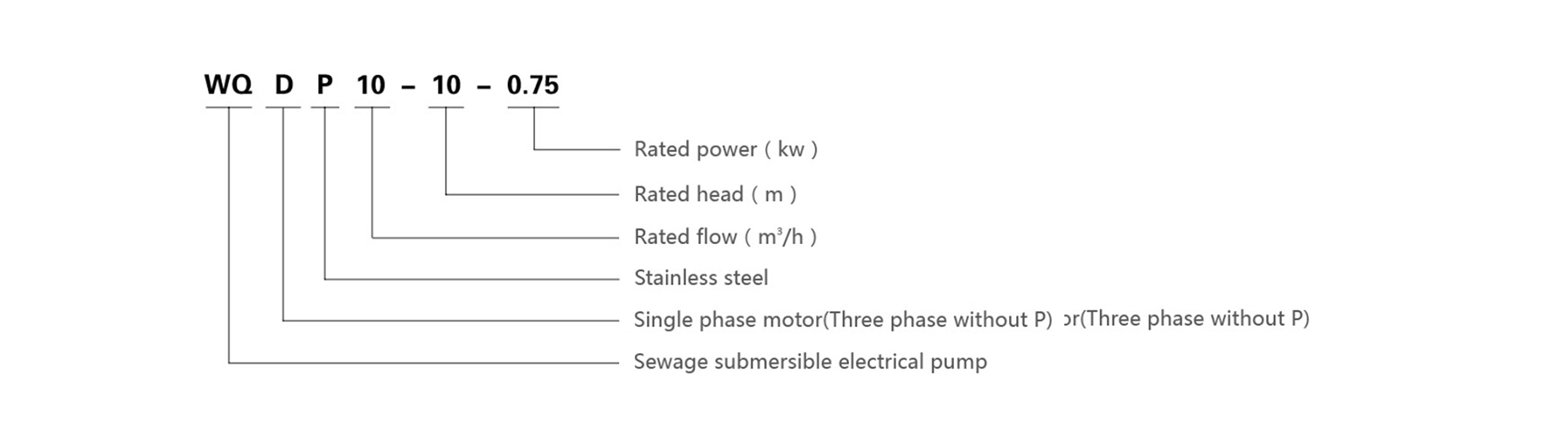

Model Description：

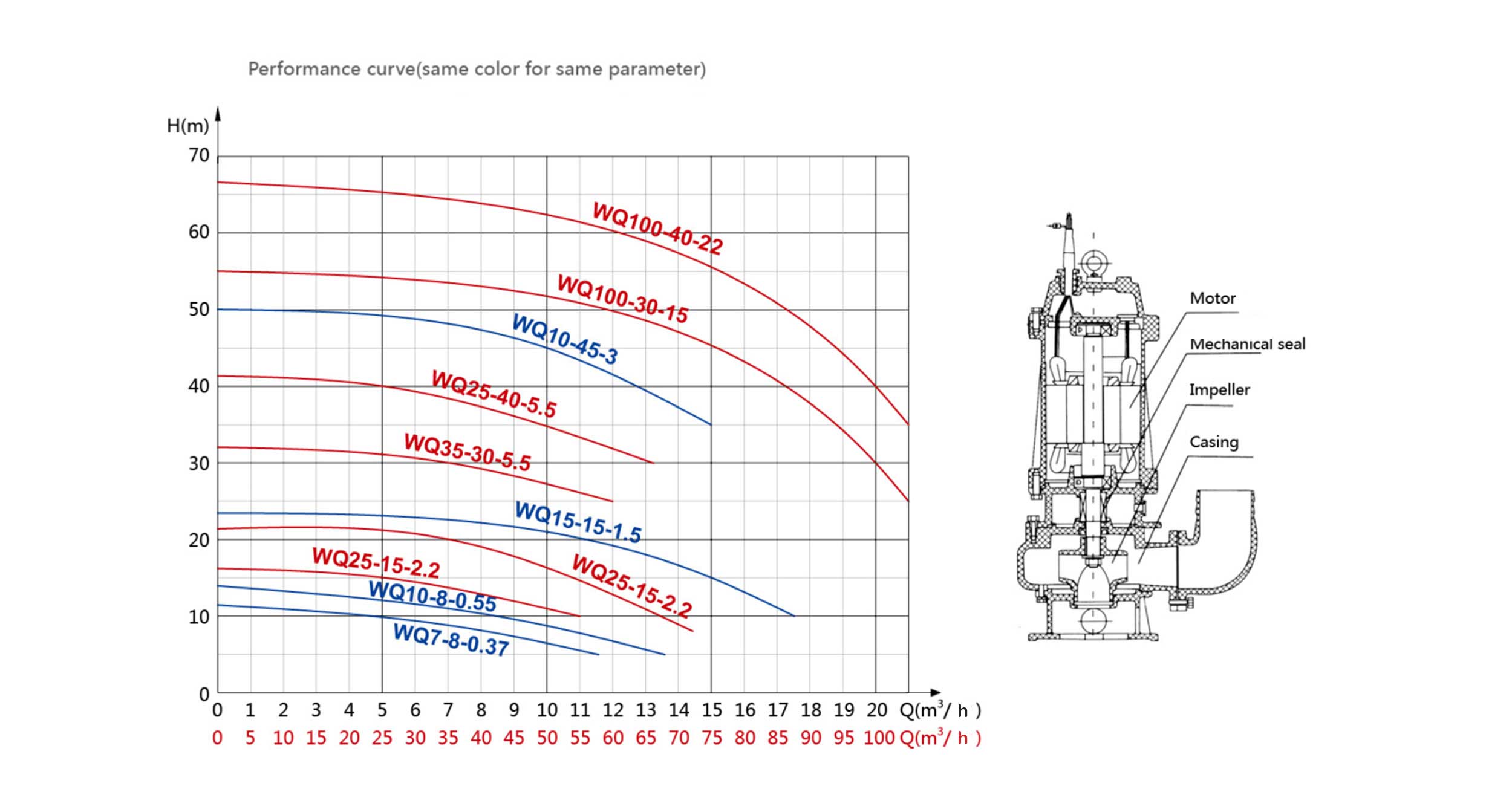

Performance curve：









Model Power
Kw		 Voltage
V		 Flow
m³/h		 Head
m		 Speed
r/min		 Aperture
mm
WQ(D)7-8-0.37 0.37 220/380 7 8 2860 2/50
WQ(D)10-8-0.55 0.55 220/380 10 8 2860 2/50
WQ(D)6-16-0.75 0.75 220/380 6 16 2860 2/50
WQ(D)10-10-0.75 0.75 220/380 10 10 2860 2/50
WQ(D)10-11-0.75 0.75 220/380 10 11 2860 2/50
WQ(D)10-15-1.1 1.1 220/380 10 15 2860 2/50
WQ(D)P15-15-1.5 1.5 220/380 15 15 2860 2/50
WQ(D)P10-26-1.5 1.5 220/380 10 26 2860 2/50
WQP60-5-1.5 1.5 380 60 5 2860 3/80
WQP10-34-2.2 2.2 380 10 34 2860 2/50
WQP15-22-2.2 2.2 380 15 22 2860 2/50
WQP25-15-2.2 2.2 380 25 15 2860 2.5/65
WQP40-10-2.2 2.2 380 40 10 2860 3/80
WQP60-7-2.2 2.2 380 60 7 2860 4/100
WQP100-5-2.2 2.2 380 100 5 2860 4/100
WQP10-45-3 3 380 10 45 2860 2/50
WQP15-30-3 3 380 15 30 2860 2/50
WQP25-25-3 3 380 25 25 2860 2.5/65
WQP35-20-3 3 380 35 20 2860 3/80
WQP60-6-3 3 380 60 6 2860 4/100
WQP100-4-3 3 380 100 4 1450 4/100
WQP10-50-4 4 380 10 5 2860 2/50
WQP15-32-4 4 380 15 32 2860 2/50
WQP35-25-4 4 380 35 25 2860 3/80
WQP60-10-4 4 380 60 10 2860 4/100
WQP100-6-4 4 380 100 7 1450 4/100
WQP15-55-5.5 5.5 380 15 55 2860 2/50
WQP25-40-5.5 5.5 380 25 40 2860 2/50
WQP35-30-5.5 5.5 380 35 30 2860 3/80
WQP65-15-5.5 5.5 380 65 15 2860 4/100
WQP100-7-5.5 5.5 380 100 7 2860 6/150
WQ15-68-7.5 7.5 380 15 68 2860 2/50
WQ45-22-7.5 7.5 380 45 22 2860 3/80
WQ85-15-7.5 7.5 380 85 15 2860 4/100
WQ100-10-7.5 7.5 380 100 10 1450 6/150
WQ140-7-7.5 7.5 380 140 7 2860 6/150
WQ25-50-11 11 380 25 50 2860 3/80
WQ40-40-11 11 380 40 40 2860 3/80
WQ100-25-11 11 380 100 25 1450 4/100
WQ180-11-11 11 380 180 11 1450 6/150
WQ300-7-11 11 380 300 7 1450 8/200
WQ45-52-15 15 380 45 52 2860 6/150
WQ60-40-15 15 380 60 40 2860 6/150
WQ100-30-15 15 380 100 30 1450 4/100
WQ180-15-15 15 380 180 15 1450 6/150
WQ250-11-15 15 380 250 11 1450 8/200
WQ100-35-18.5 18.5 380 100 35 1450 4/100
WQ180-20-18.5 18.5 380 180 20 1450 6/150
WQ250-15-18.5 18.5 380 250 15 1450 8/200
WQ500-5-18.5 18.5 380 500 5 1450 10/250
WQ100-40-22 22 380 100 40 1450 4/100
WQ200-22-22 22 380 200 22 1450 6/150
WQ250-18-22 22 380 250 18 1450 8/200
WQ500-7-22 22 380 500 7 1450 10/250
WQ180-30-30 30 380 180 30 1450 6/150
WQ250-22-30 30 380 250 22 1450 8/200
WQ600-9-30 30 380 600 9 1450 10/250
WQ850-7-30 30 380 850 7 1450 12/300
