Frequency: 200Hz
Place of Origin: China
Brand Name: CHUANGMEI
Model Number: ZDN
Type: Internal, DC variable frequency in-built motor
Drive Mode: Electric Vibrator
Safety: 48V lithium cell
Efficiency of motor: 88%
Energy saving: saving electricity by 15% and no less than 50% compared to AC motor
Portable: light,convenient for operation
Working Life: SKF bearing
Environmental protection: low noise and low voltage

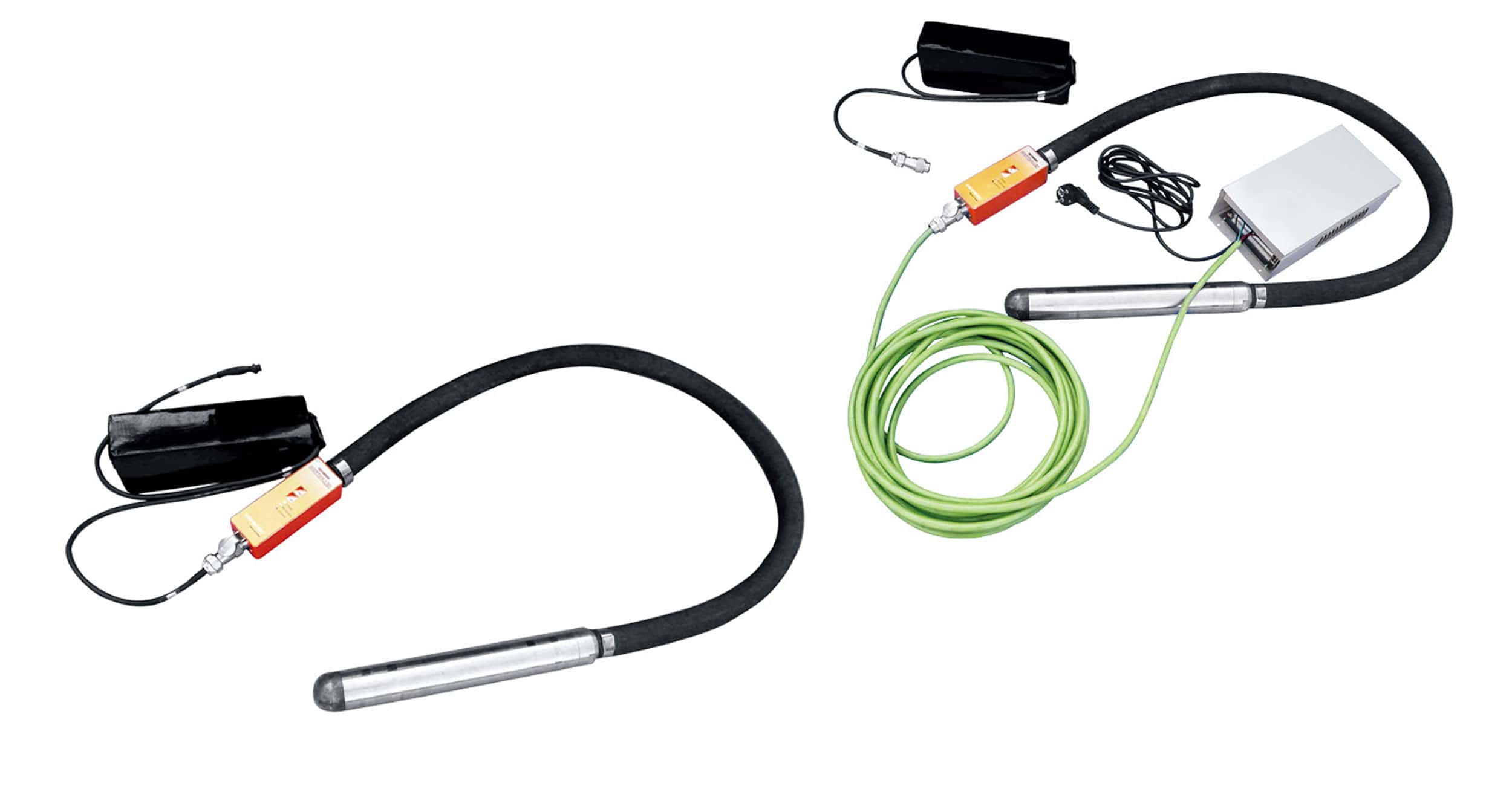

This concrete vibrator shaft have two options:
A. Use with the AC converter(the white terminal box),connect to the main supply power directely.
B. Use the Li-battery as the power source to work.
The low-voltage safety DC variable frequency vibration rod is the latest technology product developed by our company with two years. It is powered by lithium battery and it is with the built-in variable frequency motor whose frequency is 200Hz.It is the most efficient vibrating rod in the same type of internal frequency inverter motor at home and abroad. It is powered by DC48V, so there is no safety concern.The vibration force is adjustable, safe and convenient to use, and it is the most advanced vibrating rod in the world.
| Model | Diameter mm |
Vibration frequency mm |
Exciting force kn |
Amplitude mm |
Power DC/V |
Current A |
Efficiency % |
| ZDN38 | 38 | 200 | 2.6 | 2.0 | 48 | 4.9 | 86 |
| ZDN50 | 50 | 200 | 3.8 | 2.1 | 48 | 7.0 | 88 |
| ZDN65 | 65 | 200 | 5.6 | 2.3 | 48 | 11.8 | 88 |
| ZDN80 | 80 | 200 | 8.5 | 2.1 | 48 | 15.5 | 87 |
