YT112-18.5-5000 permanent magnet synchronous motor

YT112-18.5-5000 permanent magnet synchronous motor

Product Details

Permanent magnet synchronous motor



      Our permanent magnetic synchronous motor works in full-automation when frequency changes, which is a new generation of DC frequency conversion technology. Characterized by small size and light weight, when speed is 3000rpm, our synchronous motor effficiency can be two times higher than asynchronous motor with same specification, if 5000rpm, efficiency can be even 4-5 times higher. Our motor efficiency is more than 90%, which reaches the second national standard of energy consumption. It can work under constant power, constant speed and constant torque with quick reflection and precise control. We can see stable output power in the power load curve. Also synchronous motors keep working in high efficiency from the verybeginning, which is superior than other asynchronous motors. Efficiency of our permanent-magnetic synchronous motor is 15% to 20% higher than thatof other single-phase asynchronous motor(including loss from motor and controller), and 7% to 10% higher than three-phase asychronous motor. If we equip three-phase asychronous motor with frequency conversion control, its efficiency can be 10% to 13% higher. See attached power load diagram.
Outline and installation of this motor is the same as that of Y2 motor in same specification.

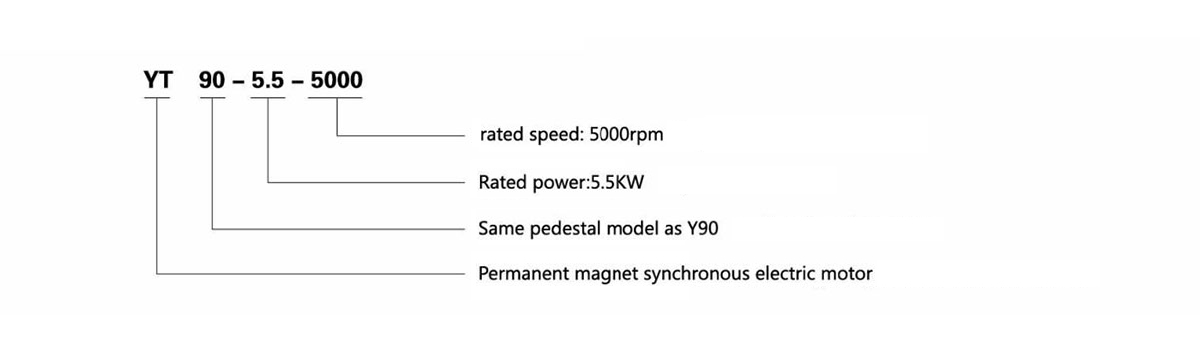

Identification codes：









5000rpm permanent magnet synchronous motor：





Model Rated power
Kw		 Voltage
V		 Rated current
A		 Rated torque
N.m		 Rated efficiency
%		 Rated/max
torque		 Rated speed
RPM		 Steady speed
%		 Speed ad justment
r/min		 Weight
Kg
YT63-0.55-5000 0.55 220 2.18 1.05 79.8 2 5000 0.2 0-6000 5.2
YT63-0.75-5000 0.75 220 2.91 1.43 81.5 2 5000 0.2 0-6000 6.0
YT63-1.1-5000 1.1 220 4.2 2.1 83.0 2 5000 0.2 0-6000 6.8
YT71-1.1-5000 1.1 220 4.2 2.1 83.0 2 5000 0.2 0-6000 8.2
YT71-1.5-5000 1.5 220 5.62 2.86 84.5 2 5000 0.2 0-6000 8.8
YT71-2.2-5000 2.2 380 4.40 4.2 85.9 2 5000 0.2 0-6000 9.3
YT71-3-5000 3 380 5.86 5.7 87.1 2 5000 0.2 0-6000 10.2
YT80-3-5000 3 380 6.0 5.7 86.2 2 5000 0.2 0-6000 10.2
YT80-4-5000 4 380 7.8 7.6 88 2 5000 0.2 0-6000 11.8
YT80-5.5-5000 5.5 380 10.5 10.5 88.9 2 5000 0.2 0-6000 13.1
YT90-4-5000 4 380 7.8 7.64 89.8 2 5000 0.2 0-6000 18.6
YT90-5.5-5000 5.5 380 10.5 10.5 89.0 2 5000 0.2 0-6000 21.3
YT90-7.5-5000 7.5 380 14.2 14.3 89.0 2 5000 0.2 0-6000 22.8
YT90-11-5000 11 380 20.5 21 90.1 2 5000 0.2 0-6000 23.5
YT100-7.5-5000 7.5 380 14.2 14.3 89.5 2 5000 0.2 0-6000 29
YT100-11-5000 11 380 20.5 35.0 90.1 2 5000 0.2 0-6000 30.9
YT100-15-5000 15 380 27.8 28.7 90.6 2 5000 0.2 0-6000 32.5
YT112-11-5000 11 380 20.5 21.0 90.6 2 5000 0.2 0-6000 39
YT112-15-5000 15 380 27.8 28.7 90.8 2 5000 0.2 0-6000 36
YT112-18.5-5000 18.5 380 34.0 35.3 91.5 2 5000 0.2 0-6000 38
YT112-22-5000 22 380 40.1 42.0 92.2 2 5000 0.2 0-6000 40
YT132-22-5000 22 380 40.1 42.0 92.5 2 5000 0.2 0-6000 46
YT132-30-5000 30 380 54.2 57.3 93.1 2 5000 0.2 0-6000 48
YT132-37-5000 37 380 66.5 70.7 93.6 2 5000 0.2 0-6000 49
YT132-45-5000 45 380 80.6 86.0 94.0 2 5000 0.2 0-6000 50.3
YT160-37-5000 37 380 66.5 70.7 93.6 2 5000 0.2 0-6000 96
YT160-45-5000 45 380 80.6 85.9 94.5 2 5000 0.2 0-6000 104
YT160-55-5000 55 380 98.1 105 94.4 2 5000 0.2 0-6000 113
YT160-63-5000 63 380 112.1 120 94.6 2 5000 0.2 0-6000 128
YT180-55-5000 55 380 98.1 86.0 94.4 2 5000 0.2 0-6000 145
YT180-63-5000 63 380 112.1 120 94.6 2 5000 0.2 0-6000 156
YT180-75-5000 75 380 133.2 143 94.8 2 5000 0.2 0-6000 172
YT180-90-5000 90 380 159.2 172 95.2 2 5000 0.2 0-6000 183
YT200-75-5000 75 380 133.2 143 94.8 2 5000 0.2 0-6000 203
YT200-90-5000 90 380 159.2 172 95.2 2 5000 0.2 0-6000 212
YT200-110-5000 110 380 194.3 210 95.3 2 5000 0.2 0-6000 220
YT200-132-5000 132 380 232.7 252 95.5 2 5000 0.2 0-6000 235
