ZN Series Insertion Type Concrete Vibrator

ZN Series Insertion Type Concrete Vibrator

Condition: New
Brand Name: chuangmei
Type: External
Drive Mode: Electric Vibrator
Voltage: 110V,220V,380V,440V
Certification: CE, CE
Place of Origin: Zhejiang, China
Model Number: ZN
Type: Other
Drive Mode: Other
Certification: CE ROHS
1.suitable for all kinds of power supply: single phase 220V ,three phase 380V /400V ,50Hz /60Hz
2. comply with CE standard and ROHS as well

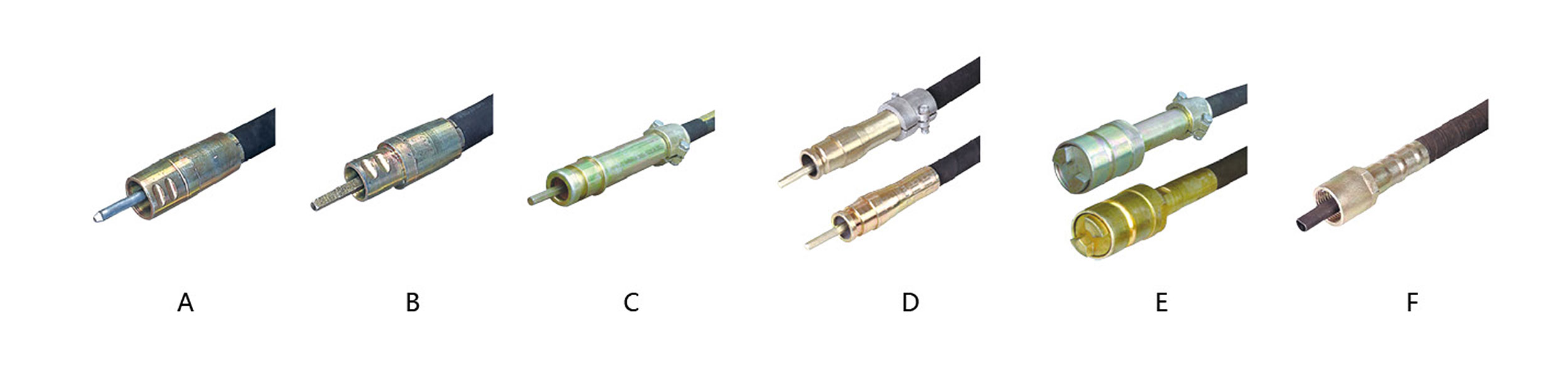

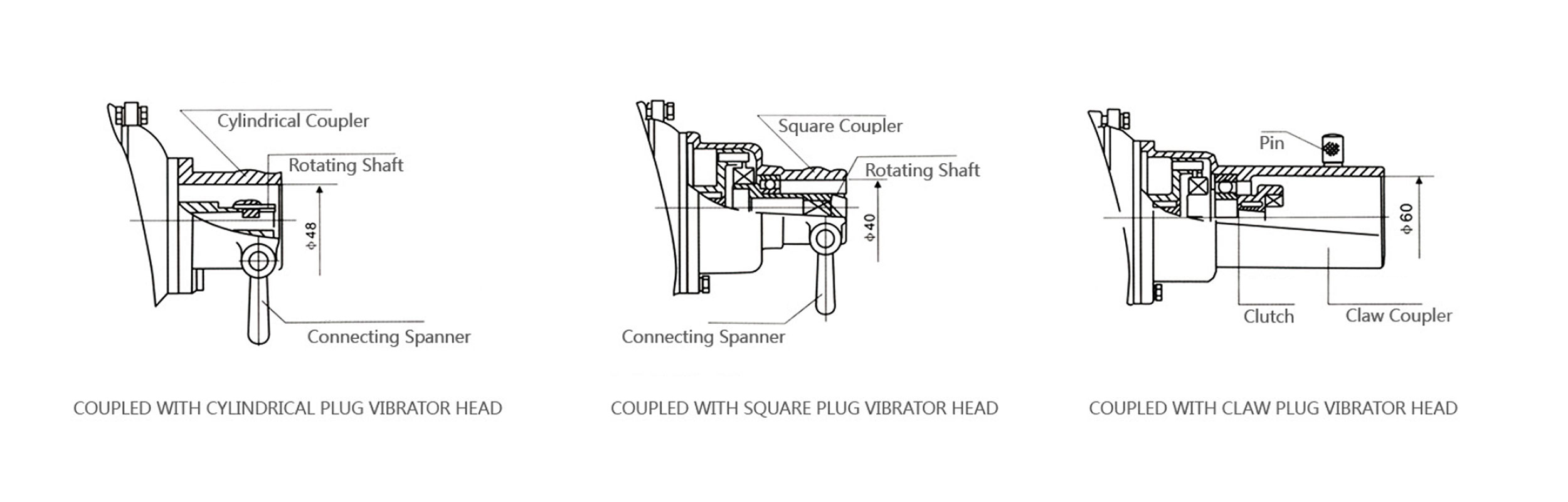

3.all kinds coupling are available
Powered by electricity and used to drive the products of vibrator bar. Different type of vibrator motors are available in compliance with different power sourceall over the world. And besides the hexagonal type and the Dynapac type of coupling,we can offer other kinds of coupling which can match almost every kind ofvibrator bar for different customers.

Product Details

















Technical parameter:





Model Power
(W)
Source Speed
50HZ     60HZ
Weight
Kg
Packing Size
mm

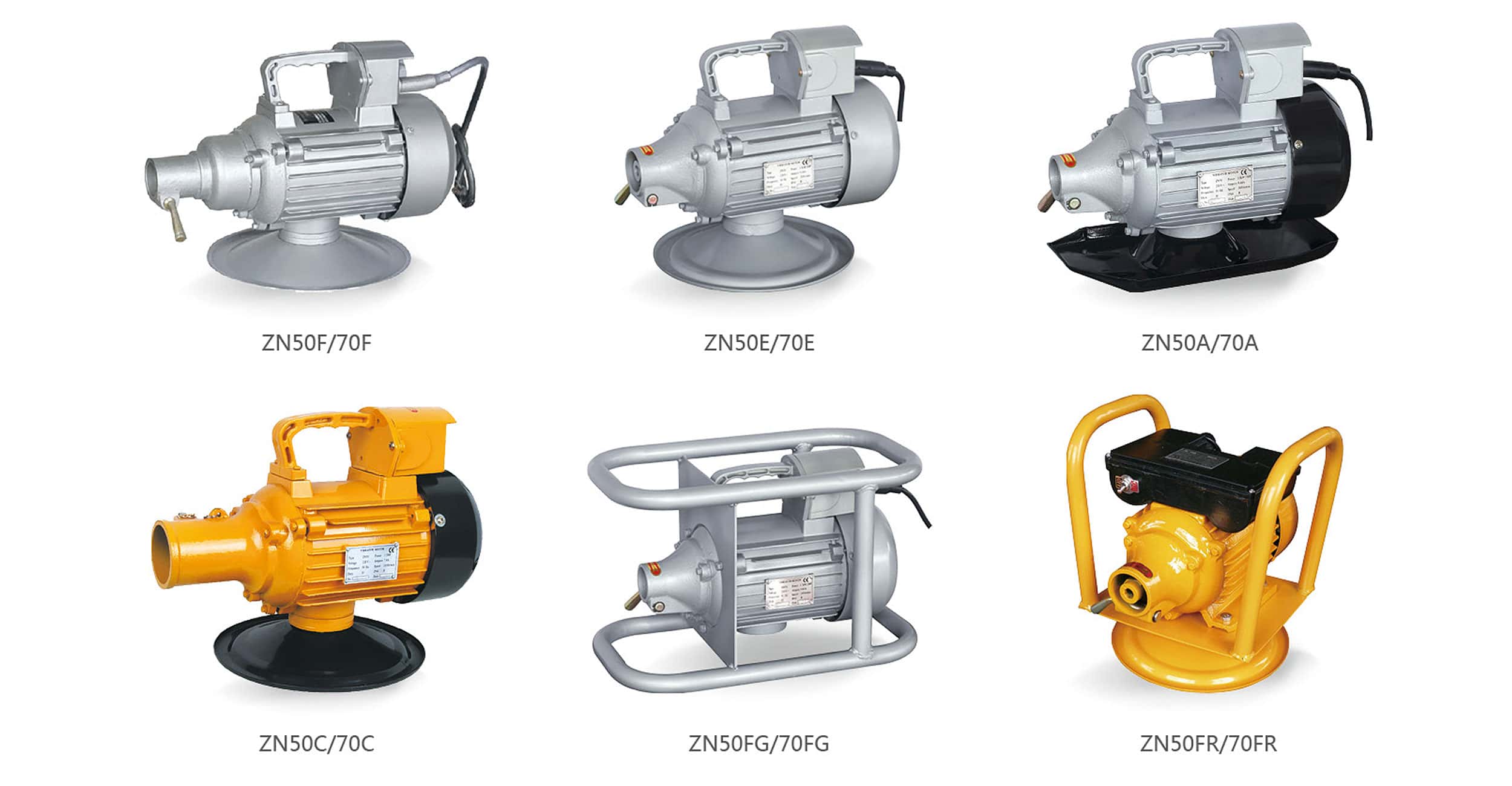

ZN50/ZN-D 1.1kW(1.5HP) ~1/3 ph 60/50Hz 2850rpm 3450rpm 14.0 370×280×310
ZN50C/ZN50C-D 1.1kW(1.5HP) ~1/3 ph 60/50Hz 2850rpm 3450rpm 16.0 450×280×310
ZN50E/ZN50E-D 1.1kW(1.5HP) ~1/3 ph 60/50Hz 2850rpm 3450rpm 15.0 370×280×310
ZN50F/ZN50F-D 1.1kW(1.5HP) ~1/3 ph 60/50Hz 2850rpm 3450rpm 15.0 430×280×310
ZN70/ZN70-D 1.5kW(2.0HP) ~1/3 ph 60/50Hz 2850rpm 3450rpm 15.0 370×280×310
ZN70C/ZN70C-D 1.5kW(2.0HP) ~1/3 ph 60/50Hz 2850rpm 3450rpm 17.0 450×280×310
ZN70E/ZN7OE-D 1.5kW(2.0HP) ~1/3 ph 60/50Hz 2850rpm 3450rpm 16.0 370×280×310
ZN70F/ZN7OF-D 1.5kW(2.0HP) ~1/3 ph 60/50Hz 2850rpm 3450rpm 16.0 430×280×310
